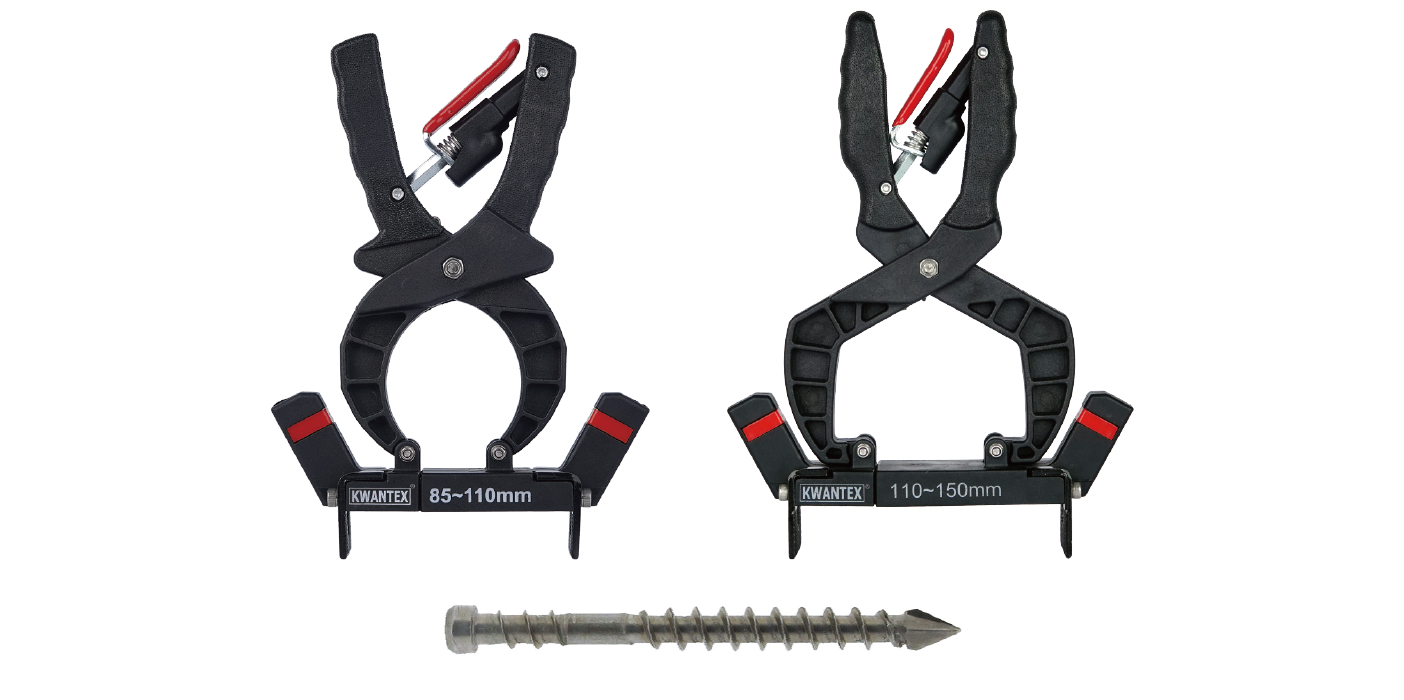

2021 / 06 / 17 KTX-Hidden Decking Screw System

KTX-Hidden Decking Screw System can be used with various deck materials, such as ACQ Pine, Composite, PVC, IPE, and etc.

 Easily installation, suitable for professional and DIY use

 With double sided screw guiding hole, just one-time clamping enables user to fasten both sides of board, less time consuming

 Work with KTX-Hidden Decking Screws, creating a beautiful and fastener-free deck surface by side fastening
 Recommended KTX-Hidden Decking Screw size:

   M4.8 X 50mm for top board thickness 19~25mm

   M4.8 X 60mm for top board thickness 25~32mm

   M4.8 X 75mm for top board thickness 32~38mm

● The gap between decks of 3.0mm/ 4.0mm could be expanded to 5.0mm/ 6.0mm per actual demand by adding 2.0mm steel sheet


Please see the video below for performance of KTX-Hidden Decking Screw System.

Related Products: KTX-Jig for Hidden Decking Screw System
