KTX-Jig for Hidden Decking Screw System

KTX-Jig for Hidden Decking Screw System

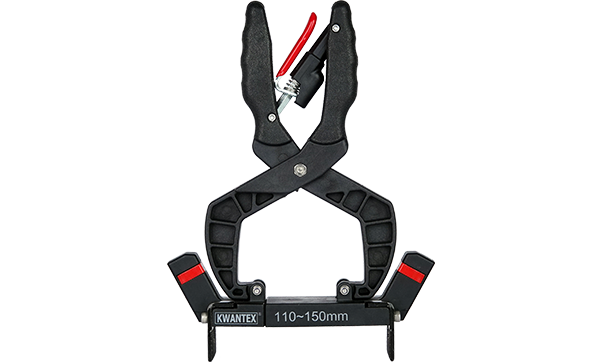

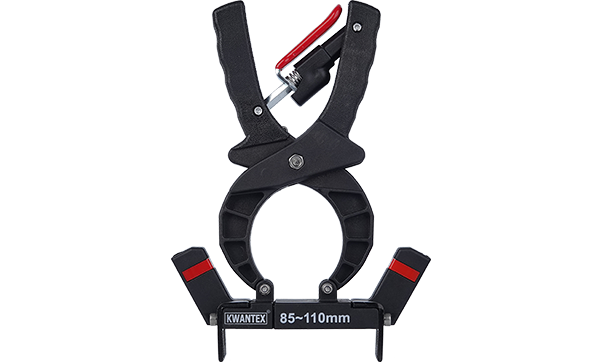

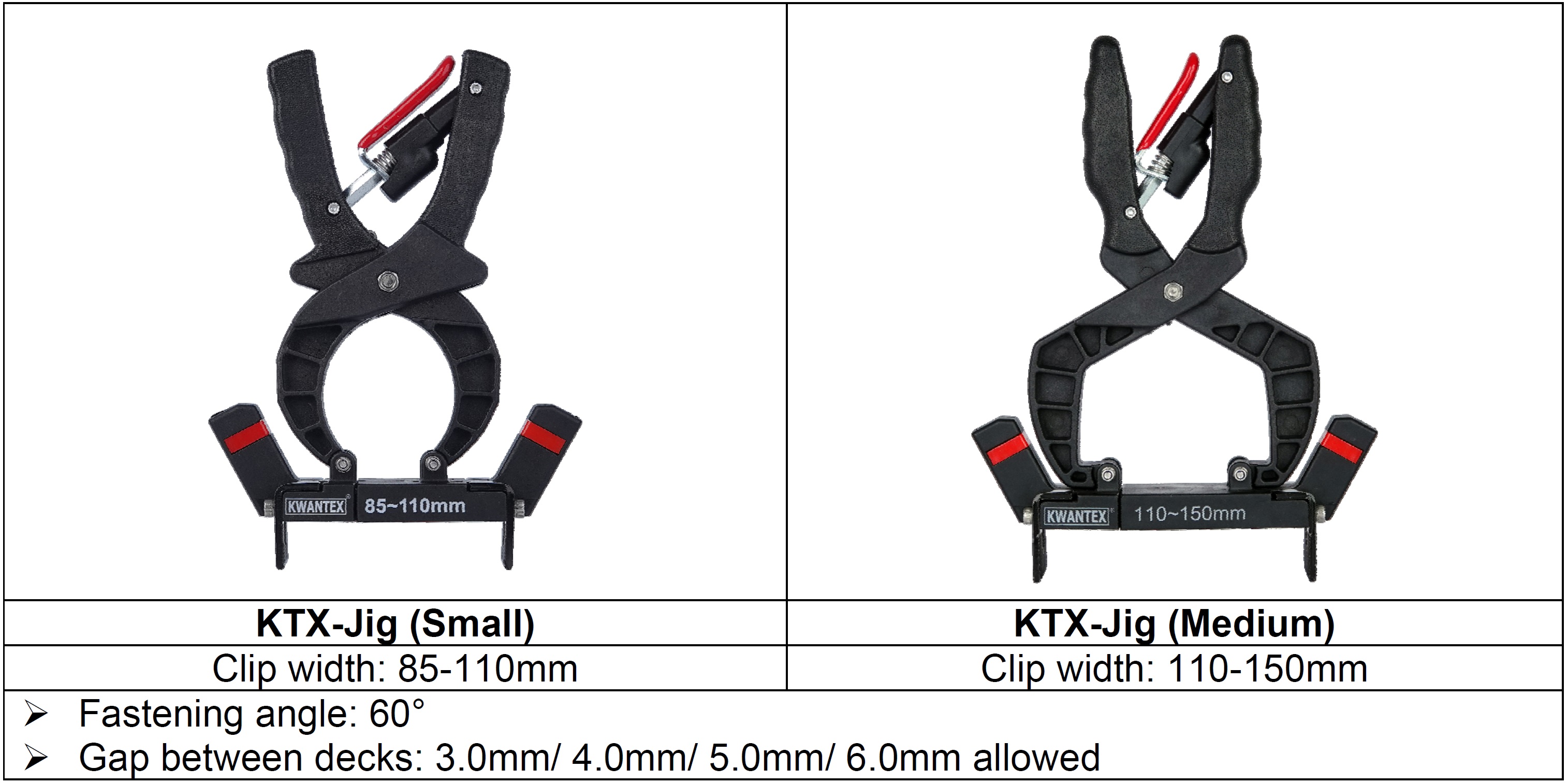

KTX-Jig (Small / Medium)

 Clip width: 85-110mm / 110-150mm

 Fastening angle: 60°

 Gap between decks: 3.0mm/ 4.0mm/ 5.0mm/ 6.0mm allowed

Description



Easy installation - Hidden Fasteners

● Suitable for professional and DIY use

● For use with various deck materials, such as ACQ Pine, Composite, PVC, IPE, and etc.

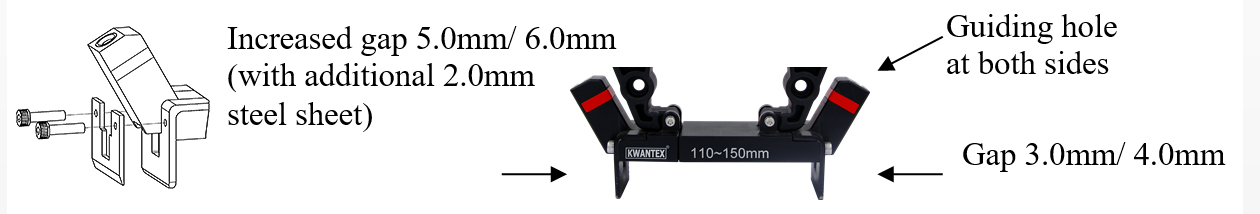

● The gap between decks of 3.0mm/ 4.0mm could be expanded to 5.0mm/ 6.0mm per actual demand by adding 2.0mm steel sheet



● The color of top clamp device can be customized per request

● The handle provides non-slip locking function



Time-saving solution - Hidden Fasteners

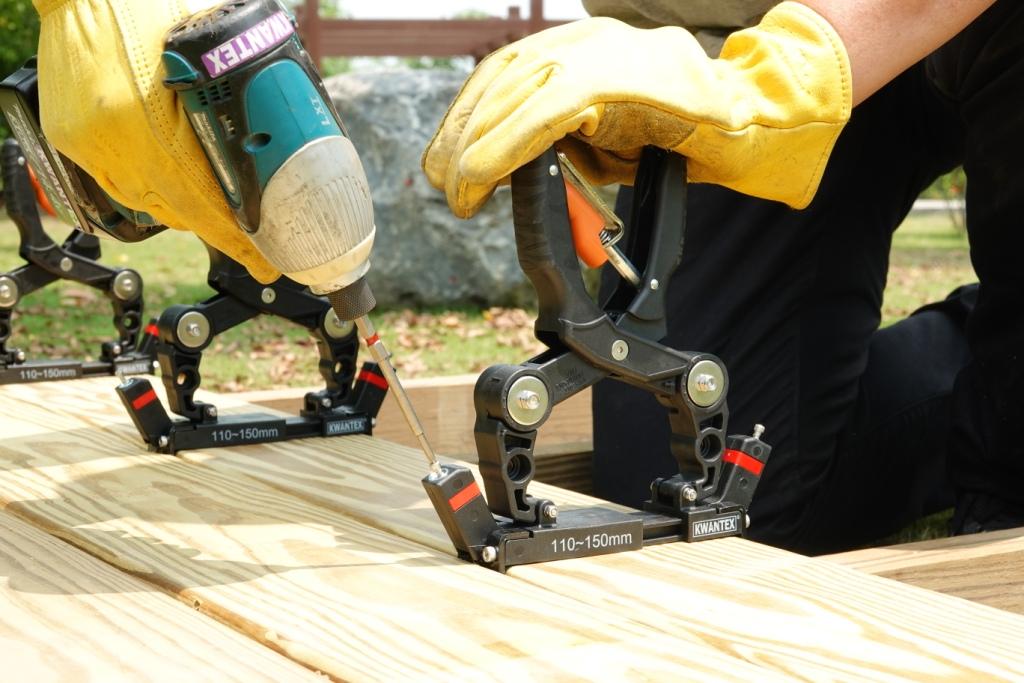

● With double sided screw guiding hole, just one-time clamping enables user to fasten both sides of board, less time consuming

● Work with KTX-Hidden Decking Screws, creating a beautiful and fastener-free deck surface by side fastening

● Besides side fastening, KTX-Hidden Decking Screws can also be driven from top of the deck board directly without KTX-Jig

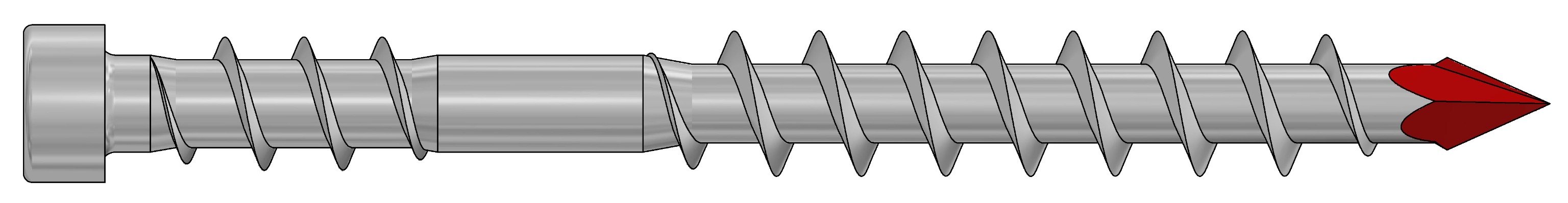

Recommended KTX-Hidden Decking Screw - Hidden Fasteners

● M4.8x50mm: suitable for top board thickness 1925mm

● M4.8x60mm: suitable for top board thickness 2532mm

● M4.8x75mm: suitable for top board thickness 3238mm



Patent - Hidden Fasteners

● KTX-Jig Patented: Taiwan, China, Japan, Europe, USA, Canada

● Screw Patented: European Union, United Kingdom, USA





KTX-Jig for Hidden Decking Screw System video





FAQ - Hidden Fasteners

Q1: Is there assigned screw to use with KTX-Jig?

A1: Yes, KTX-Jig must be used with KTX-Hidden Decking Screw. The small head diameter is designed to fit the guiding hole of KTX-Jig perfectly, the nail point is easy to position without pre-drilling a hole, and we supply M4.8 X 50mm and M4.8 X 60mm with 10B21, SS304 and SS316 material. The screw length depends on the thickness of top board. For your information, new size M4.8 X 75mm is on the way.

Q2: What is the MOQ of KTX-Jig?

A1: The MOQ is 1,020pcs with black handle color. If you have assigned color for the handle, the MOQ is 2,040pcs.
