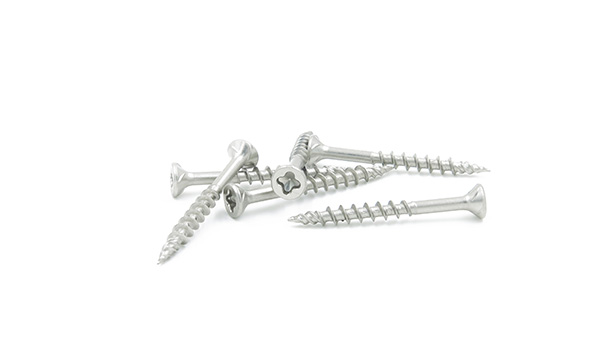

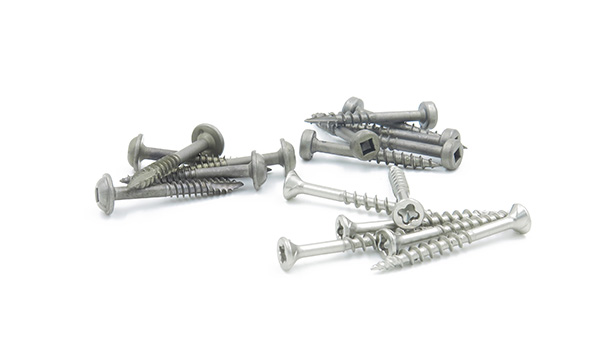

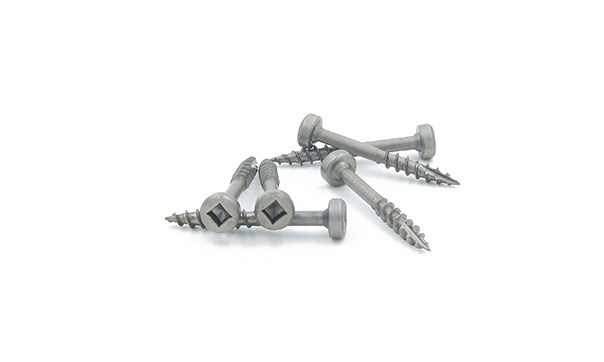

KTX-Torpedo Particle Board Screw and Face Frame Screw

Best wood screw ever

 Category: Wood Screw

 Size: #6~#14 (M3.5~M6.3)

 Length: Per Customer's Request

 Material: C1022

OEM/ODM is welcome

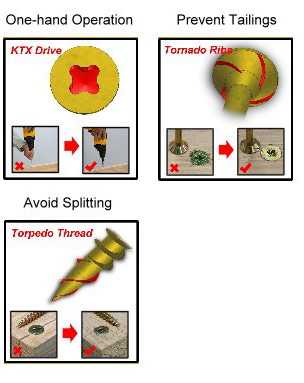

Stronger torque transfer

● KTX Drive optional, drive well with KTX or SQ bits and much more torque transfer.

● The bit easily slides into the recess due to concave surface.


Head sinking without burrs

● Tornado Ribs under flat head, keep fastened object surface smooth and free of tailings and burrs around the screw head.


Fast grabbing without split

● No TY-17 or Cutters necessary, just using one type of Torpedo thread to solve all splitting problem and reduce much more driving torque while still remaining secure gripping no matter in hard/soft wood.

● Different helical angled Torpedo threads design always provides easy and fast driving (front thread first grabs wood surface and becomes milling cutter while later thread engaging).

● No splits even close to the edge of the material board.


The best wood screw is used in particle board, furniture and cabinet application.



Q1: What is the advantage of KTX-Torpedo Particleboard and Face Frame Screw?

A1: The screw adopts Torpedo thread which can fast grab into the wood and reduce wood split. Torpedo thread can replace regular TY-17 or double cuts.

Why choose Kwantex
  • Professional and Leading Screw Brand - KWANTEX
    Established in 1996
    Focus on Research and Design in fastener field
    Second factory opened in 2015
    Industry 4.0 spirit
  • Strong R&D and QA Team
    Develop new products every year
    Obtain more than 100 patents
    3 major QA procedure:
    Dimensional measurement
    Mechanical properties test
    Actual test on materials
    Environmental lab:
    Salt spray test and kesternich test
Certificates to Meet International Fasteners Standards
  • ISO 9001, ISO 14001, ISO 45001
  • CE marking for EN 14566, EN 14592
  • KTCO,Corrosion Protection Coating - C4 Approved by RISE in Sweden
  • German Red Dot Product Design Award – KTX-Torpedo 1 Screw
  • SGS 18 Years Merit Award – ISO 9001
  • Taiwan Small & Medium Enterprise Innovation Award – KTX-Torpedo 1 Screw
Kwantex Research Inc. was established since 1996 mainly devotes to Research and Design in fastener field. We are one of the few enterprises who own the most fastener patents and collaborate with many outstanding fastener companies over the world on innovative products.
